Aluminum Plate is a cornerstone material in marine engineering due to its unique combination of lightweight properties, ทนต่อการกัดกร่อน, and strength. Among the most widely used alloys for marine applications are 5083, 5086, และ 6061. This article explores their properties, differences, and suitability for marine environments.
Marine-grade aluminum alloys are designed to withstand harsh saltwater environments, resisting corrosion while maintaining structural integrity. Key requirements include:
- Saltwater corrosion resistance
- High strength-to-weight ratio
- Weldability and formability
- Resistance to stress corrosion cracking (SCC)
The 5xxx series (magnesium-based) และ 6xxx series (magnesium-silicon-based) alloys dominate marine applications. Below, we compare 5083, 5086, และ 6061.

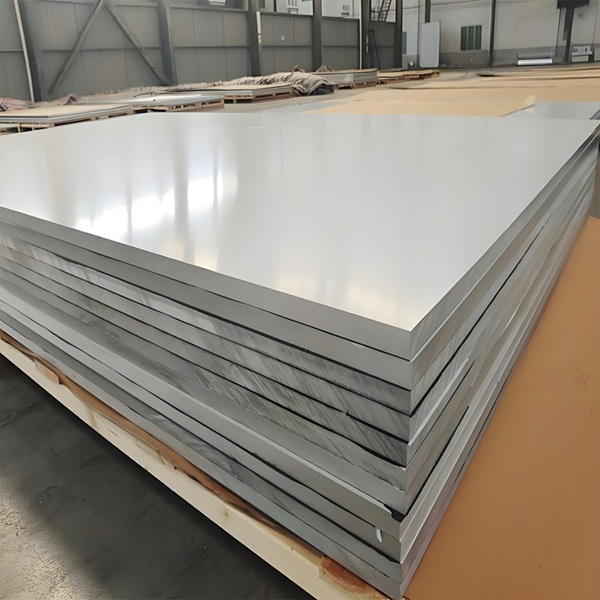

แผ่นอลูมิเนียม 5083: The Gold Standard for Marine Applications
องค์ประกอบ:
- Primary Alloying Elements: 4–4.9% Mg, 0.4–1% Mn
- อารมณ์: Typically H116 or H321 (improved corrosion resistance).
Properties:
- Strength: แรงดึงสูง (~290 MPa) and excellent toughness.
- Corrosion Resistance: Outstanding resistance to seawater and industrial chemicals.
- ความสามารถในการเชื่อม: Excellent, retains strength after welding.
- Marine Applications:
- Ship hulls, ดาดฟ้า, and superstructures.
- Offshore platforms and buoys.
- Cryogenic storage tanks (due to low-temperature performance).
Advantages:
- Superior performance in aggressive marine environments.
- Ideal for load-bearing structures exposed to saltwater.
3. แผ่นอลูมิเนียม 5086: A Close Contender
องค์ประกอบ:
- Primary Alloying Elements: 3.5–4.5% Mg, 0.2–0.7% Mn
- อารมณ์: H116 or H321.
Properties:
- Strength: Slightly lower than 5083 but still robust (~270 MPa tensile strength).
- Corrosion Resistance: Excellent, comparable to 5083.
- Formability: Better than 5083, making it easier to shape.
Marine Applications:
- Boat hulls and gangways.
- Marine railings and walkways.
- Pressure vessels and tankers.
Advantages:
- Cost-effective alternative to 5083 for moderately stressed components.
- Excellent balance of strength, ทนต่อการกัดกร่อน, และความสามารถในการทำงาน.
4. แผ่นอลูมิเนียม 6061: The Versatile Structural Alloy
องค์ประกอบ:
- Primary Alloying Elements: 0.8–1.2% Mg, 0.4–0.8% Si (heat-treatable).
- อารมณ์: T6 (solution heat-treated and artificially aged).
Properties:
- Strength: แรงดึงสูง (~310 MPa) but less corrosion-resistant than 5xxx alloys.
- ความสามารถในการแปรรูป: Excellent, ideal for complex parts.
- Corrosion Resistance: Good in mild marine environments but may require protective coatings in harsh conditions.
Marine Applications:
- Fittings, เสากระโดงเรือ, and hardware.
- Small boat components (e.g., frames, brackets).
- Non-immersed structures like cabin components.
Advantages:
- Superior machinability and weldability.
- High strength for structural parts not directly exposed to seawater.
5. Key Differences Between 5083, 5086, และ 6061
| Property | 5083 | 5086 | 6061 |
|---|---|---|---|
| Corrosion Resistance | Excellent (เรือเดินทะเล) | Excellent (เรือเดินทะเล) | ดี (needs coating) |
| Strength | สูง | Moderate-High | Very High |
| Primary Use | Ship hulls, offshore | Marine structures | Structural fittings |
| ความสามารถในการเชื่อม | Excellent | Excellent | ดี |
| Cost | สูง | Moderate | Moderate |
6. Fabrication Tips for Marine Aluminum Plates
- การเชื่อมโลหะ:
- Use 5356 หรือ 5183 filler wire for 5xxx alloys.
- Avoid excessive heat to prevent magnesium segregation in 5083/5086.
- Corrosion Protection:
- Anodize or apply marine-grade coatings (e.g., epoxy) ไปยัง 6061.
- Avoid galvanic corrosion by isolating aluminum from stainless steel or copper.
- Design Considerations:
- Use 5xxx alloys for immersed components.
- Opt for 6061 in low-corrosion, high-stress areas.
7. Sustainability and Recycling
- Aluminum is 100% recyclable, reducing environmental impact.
- Marine-grade alloys retain properties after recycling, supporting circular economy goals.
Choosing the right aluminum alloy for marine applications depends on balancing strength, ทนต่อการกัดกร่อน, and cost:
- 5083/5086: Best for immersed, high-stress marine structures.
- 6061: Ideal for non-immersed, machined components.
For projects requiring direct seawater exposure, 5083 และ 5086 are unmatched. ในขณะเดียวกัน, 6061 offers versatility for structural parts in less corrosive environments. Always consult with suppliers to ensure compliance with marine standards like ASTM B928 (for 5xxx alloys) หรือ AMS 4117 (สำหรับ 6061).
-
-
-
