5052 Aluminum coil

Home Aluminum coils 5052 Aluminum coil

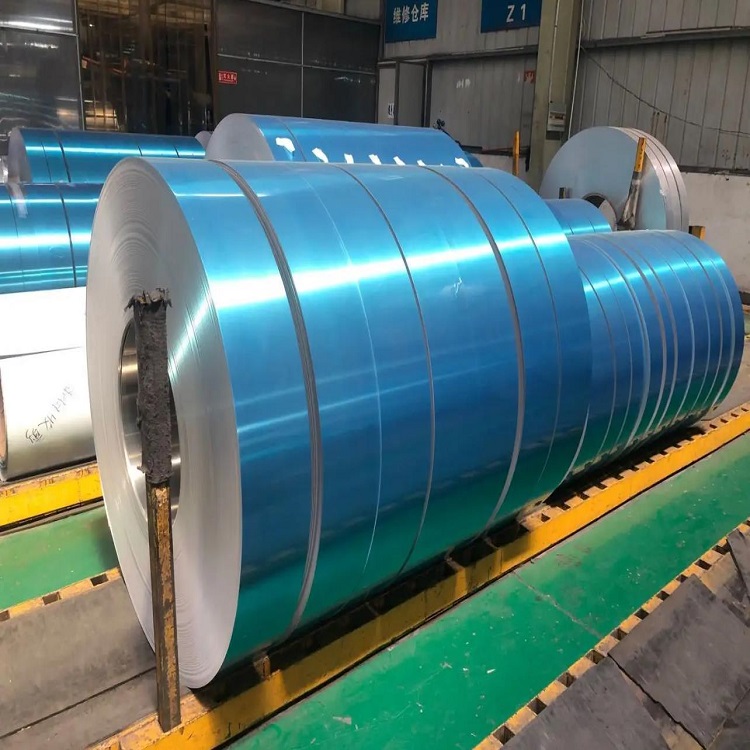

5052 Aluminum coil

5052 aluminum coil is the highest strength alloy of the more non-heat-treatable grades. Its resistance to fatigue is better than most grades of aluminum. Alloy 5052 has a good marine atmosphere corrosion resistance of saltwater and excellent workability.

Category: Aluminum coils
Category: Aluminum coils Tags: 1060 3003 5052 5754 6061 6063 6082 aluminum embossed diamond checkered sheet / plate, 5052 aluminum coil, 5052 aluminum plate, 5052 aluminum sheet, Factory Price 5052 Aluminum Plate for Toolbox
  • Description
  • Tags
  • Comments

Description

The 5052 aluminum coil is an AL-Mg alloy aluminum plate. Magnesium is the main alloying element in the 5052 alloy aluminum plate. It is the most widely used anti-rust aluminum. This alloy has high strength, especially fatigue resistance: plasticity and corrosion resistance High toughness, can not be strengthened by heat treatment, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, poor machinability, and can be polished. Aluminum-magnesium alloys also contain a small amount of manganese, chromium, beryllium, titanium, etc. Except for a small amount of solid solution, most of the manganese in the alloy forms MnAl6. The role of chromium in 5052 aluminum plate is similar to that of manganese, which can improve the resistance to stress corrosion cracking, improve the strength of base metal and weld, and reduce the tendency of welding cracks, but its content generally does not exceed 0.35%.

5000 series aluminum alloys represent 5052, 5005, 5083, 5A05 series. 5000 series aluminum rods belong to the more commonly used alloy aluminum plate series, the main element is magnesium, and the magnesium content is between 3-5%. It can also be called aluminum-magnesium alloy. The main features are low density, high tensile strength, high elongation, and good fatigue strength, but it cannot be strengthened by heat treatment. Under the same area, the weight of aluminum-magnesium alloy is lower than other series. It is also widely used in conventional industries.

The 5052 aluminum plate has medium strength, good formability, corrosion resistance and weldability, and high fatigue resistance. It is a commonly used high-grade anti-rust aluminum. 5052 alloy aluminum sheet is widely used in the automotive industry, generally used in automotive fuel tanks, oil pipes, conduits, low-load parts, etc., and can also be used in the production of various liquid containers

The 5083 aluminum plate or aluminum coil has a high magnesium content and belongs to a high-magnesium alloy. It cannot be strengthened by heat treatment, has good strength and corrosion resistance, good machinability, can be welded, and can be anodized. 5083 alloy aluminum plate can be used in shipbuilding, automobiles, aircraft welding parts, subway light rail, pressure vessels that require strict fire protection (such as liquid tankers, refrigerated vehicles, refrigerated containers), refrigeration devices, TV towers, drilling equipment, transportation equipment, missiles Parts, Armor, etc.

The magnesium content of 5754 aluminum plate is higher than that of 5052 aluminum plate and lower than that of 5083 aluminum plate. It has high fatigue resistance, good corrosion resistance and good weldability. Seals and other parts can also be used to manufacture pressure vessels, ships and transport tanks, etc.

          Chemical Composition of 5052 Aluminum coil

Elements Si Cu Mg Zn Mn Cr Fe Other Al
Contents 0.25 0.1 2.2-2.8 0.10 0.10 0.15-0.35 0.4 0.15 rests
Specifications of 5052 Aluminum coil
Temper  F, O, H14, H16, H18, H19, H22, H24, H26, H28
Thickness (mm) 0.2-350
Width (mm) 40-2600
Length (mm) Customized
Typical applications Silo, flange material, GIS shell, Automobile, Bus, trunk board, marine, petrochemical equipment, and components

5052 aluminum plate is a conventional anti-rust aluminum alloy plate, which is divided into 5052 thin plate, 5052 medium and thick plate, 5052 thick plate according to the specification, 5052-O state aluminum plate, 5052-H112 aluminum plate, 5052-H32 aluminum plate, 5052-H34 aluminum plate, the above is the commonly used 5052 aluminum plate state.

5052 aluminum sheet is widely used in fields such as ships, machinery, electronic appliances, chemicals, building materials, decoration and other fields due to its good mechanical properties, cutting properties, and anodizing properties.

5052-H32 is the most commonly used state of 5052 aluminum plate. H32 represents the processing condition of the product. H can be understood as incomplete annealing and work hardening. The hardness is too soft, and it has been properly work hardened. 32 represents that the modified product has been stabilized and the hardness is 1/4 hardness

China aluminum coil supplier RAYIWELL MFG / RuiYi aluminum can offer 1050 1100 2024 3003 4017 5052 6061 7075 aluminum sheet in custom sizes and patterns with cheaper price but high quality.

Tags: 1060 3003 5052 5754 6061 6063 6082 aluminum embossed diamond checkered sheet / plate, 5052 aluminum coil, 5052 aluminum plate, 5052 aluminum sheet, Factory Price 5052 Aluminum Plate for Toolbox
