Description

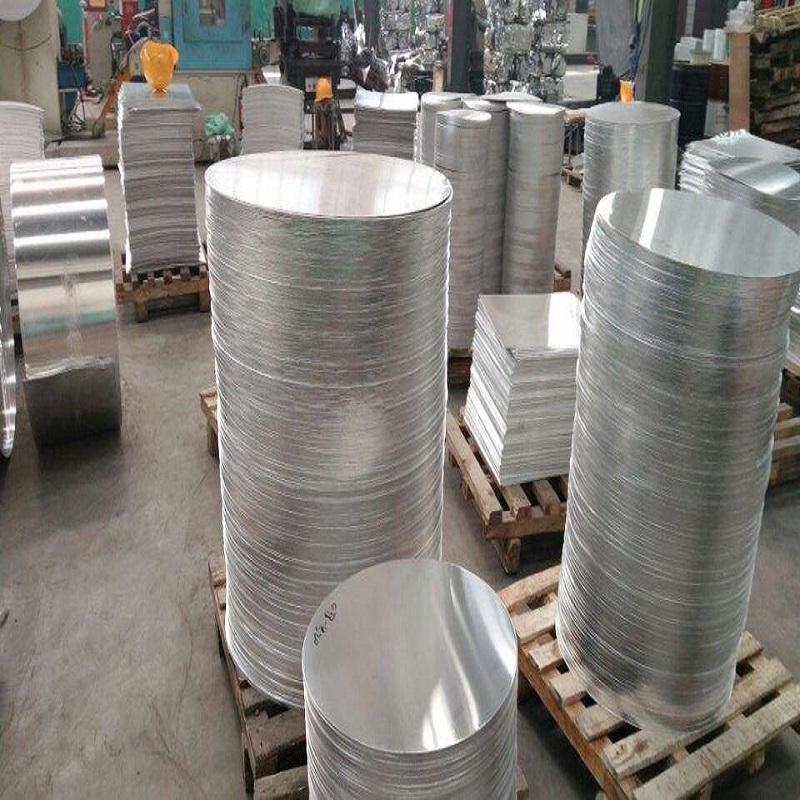

Aluminum circle, as aluminum disc, is widely used in making aluminum cookware, as aluminum sauce pan, pizza pan, utensils application. It is normal with thickness from 0.3mm–10mm, diameter from 100mm-800mm
The aluminium circle is widely used in cold-extrusion, Reflector, Traffic sign or deeply-drawing for making electric rice cookers, non-stick pans, pots, kitchens, and cookware.
Cold Rolling Aluminum Circles are widely used in furniture like tables. But most aluminum circles clients requested are Deep Drawing Quality Aluminum Circle. These aluminum circles are widely used in kitchenware, cookware, reflector-light etc.
Excellent Surface Quality for lighting reflectors.
Excellent deep drawing and spinning quality.
We provide heavy gauge circles with thicknesses up to 6mm thick which is ideal for cookware.
Anodizing Quality and Deep Drawing Quality which is suitable for cookware as well.
Available aluminum sheet grade
1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.
3000 series:3003,3004,3102,3104,3105,3005, etc.
4000 series:4032,4043, 4017, etc
5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.
6000 series:6061,6063,6262,6101, etc
7000 series:7072,7075,7003 etc
8000 series: 8011, etc.
Size of aluminum sheet
Alloy:1050, 1060, 1070, 1100, 3002, 3003, 3004, 5052, 5754, 6061 etc.
Temper: O, H12, H14, H16, H18
Thickness:0.012″ – 0.39″ (0.3mm – 10mm)
Diameter:0.79″ – 47.3″ (20mm -1200mm)
Surface: Polished, Bright, Anodized
Mother coil: CC or DC
Weight: About 2mt per pallet for general size
MOQ: 5ton per size
Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Standard product: GBT3880, JIS4000, EN485, ASTM-B209
Delivery time: about 30days after receiving the deposit
Applications of Aluminum Circle Sheet
Cold Rolling Aluminum Circles are widely used in furniture like tables. But most aluminum circles clients requested are Deep Drawing Quality Aluminum Circle. These aluminum circles are widely used in kitchenware, cookware, reflector-light etc. Aluminum Circle SheetFeatures of Aluminum Circle for Cooking Utensils1. Wide range of selection on circles’ size including customized shape and size;2. Excellent deep drawing and spinning quality;3. RoHS and REACH compliance.
A. Specifications of Aluminum Circle for Cooking Utensils
| Products Name | Alloy | Purity | Hardness | Specification | |
| Thickness | Diameter | ||||
| Aluminum Discs | 1050, 1070, 3003 | 96.95-99.70% | O, H12, H14 | 0.5-4.5 | 90-1020 |
B. Chemical Composition (%) for Aluminum Circle for Cooking Utensils
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | – | – | 0.05 | – | 0.05 | 0.03 | 0.03 | 99.50 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | – | – | 0.04 | – | 0.05 | 0.03 | 0.03 | 99.70 |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | 0.03 | – | – | 0.10 | – | – | – | 0.15 | 96.75 |
C. Mechanical Properties for Aluminum Circle for Cooking Utensils
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
D. Specification Tolerances
| Blanked and Sheared Circle Products | |||
| Thickness(mm) | Diameter Range (D)(mm) | ||
| 0.5-4.5 | D ≤ 455 | 455< D ≤ 1000 | 1000< D ≤ 1200 |
| +/- 0.079 | +/- 0.099 | +/- 0.015 | |
| The max dimension may vary according to individual specifications | |||
–
–
–
